Brand NEW Kearney Squeezon Ultra Range and 50 similar items

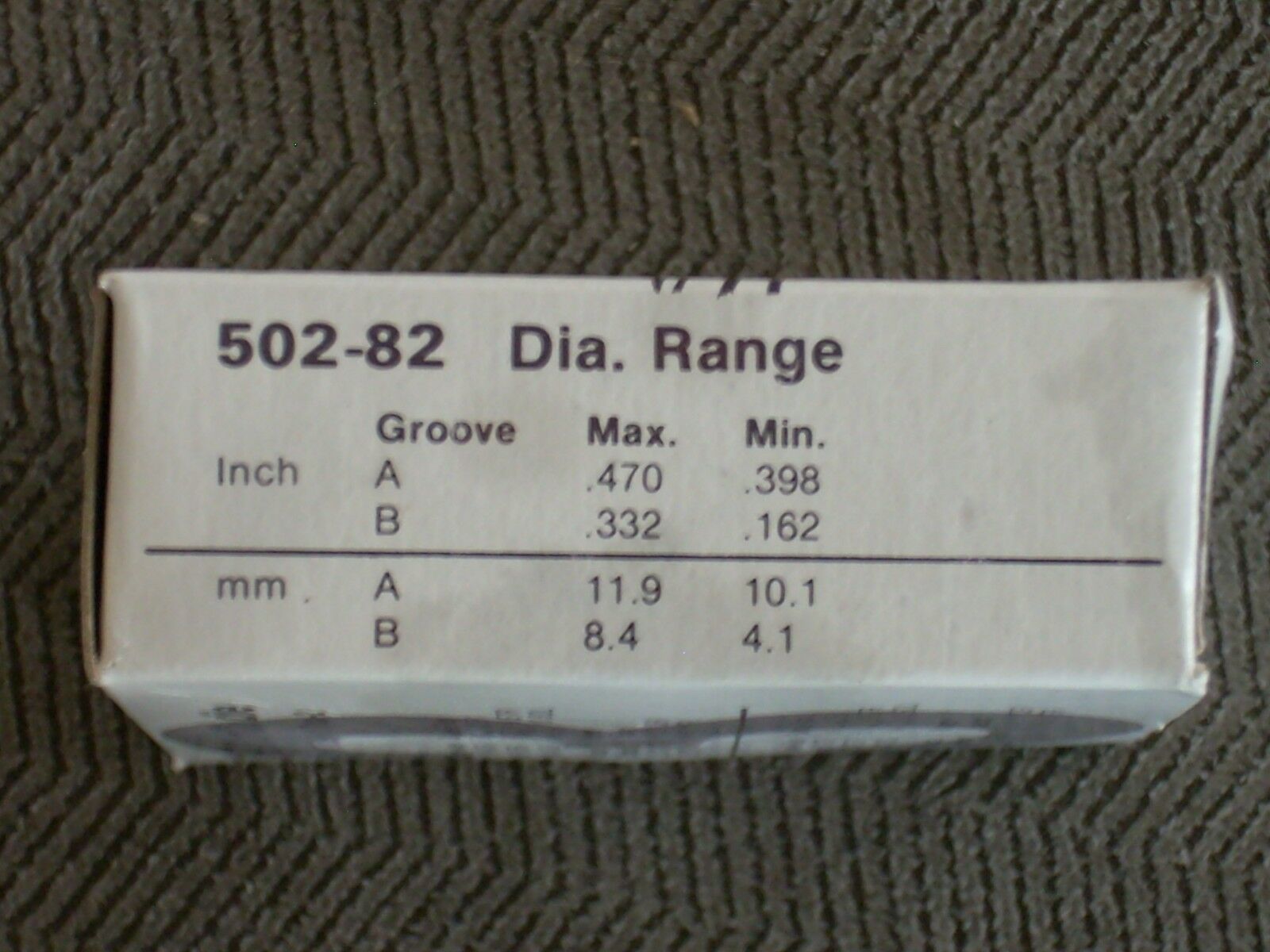

Made in the USA BRAND NEW!!!! With factory installed Kearnalex Inhibitor Seven Connector Series # 3 502-82 Taps, Cable-Cable: Connector Type - Compression Overhead Cable Tap; Material - Aluminum; Shape - Figure H; Conductor Type - AL/CU, ACSR; Run, Solid - 4/0-3/0 sol AL/CU; Run, Stranded - 3/0-2/0 str AL/CU; Run, ACSR - 2/0-1/0 ACSR; Tap, Solid - 1/0-6 sol AL/CU; Tap, Stranded - 1-6 str AL/CU; Tap, ACSR - 2-6 ACSR; Die Index - D or D3; Manufacturer Series - Squeezon Kearney Aluminum Squeezon Connectors are made of electrical conductor grade soft aluminum which provides maximum conductivity and compressibility. Kearney Squeezon Connector meets the Class A requirements for electrical connectors specified in ANSI C119.4 (TDJ-162). These tests are made for resistance, temperature rise, and mechanical requirements. Aluminum Squeezon Connectors are designed to be installed with industry standard dies. Ultra Range Aluminum Squeezon Connectors combine the original Kearney “H-Shape” with external slots to accommodate an extended range of conductor sizes.The conductor grooves have smooth unbroken surfaces to provide maximum contact and minimize voids. All Aluminum Squeezon Connectors are supplied with factory installed Kearnalex Inhibitor, assuring that this very important element used for a dependable connection will not be omitted at the time of installation.
