Single Phase To 3 Phase Converter, Mysweety and 49 similar items

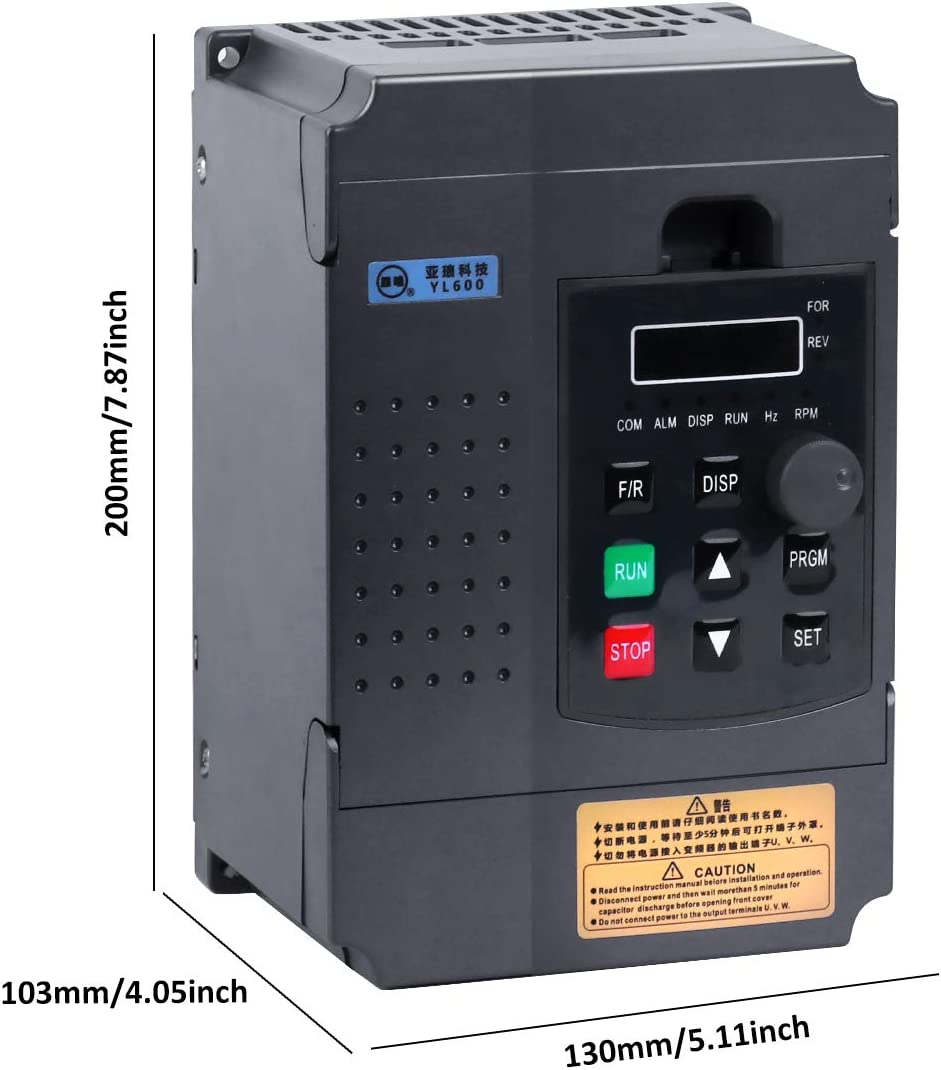

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed Single Phase to 3 Phase Converter, MYSWEETY AC 220V/2.2KW 3HP 10A VFD Inverter Frequency Converter for Spindle Motor Speed Control (1 Phase Input and 3 Phase Output) Specification Item model number YL600 Style General Inverter Power Source 220v Product Dimensions 9.84 x 5.91 x 7.28 inches Country of Origin China Item Weight 3.04 pounds Input Voltage 220 Volts Item Dimensions LxWxH 9.84 x 5.91 x 7.28 inches Manufacturer MYSWEETY Is Discontinued By Manufacturer No Brand MYSWEETY Included Components VDF 5.91 inches x 9.84 inches x 7.28 inches. Weight: 3.04 lb Item Description This is single phase VFD with 1 phase INPUT and 3 phase OUTPUT,the power is 2.2KW, 220V,10A, VFD Dimension: 130 x 103 x 200 mm (L x W x H). ??Please note: The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which will cause a short circuit. Input voltage: 220V(+/-15%); Output voltage: 220VAC; Input frequency: 50/60 Hz; Output frequency: 0-400 Hz; Input phase: 1 phase; Output phase: 3 phase. Application: Spindle Motor, Drill Press, CNC, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines! Due to the VFD product is a flexibly configurable device , you are welcomed to consult with our CS make best choice for your exact application. Simple to operate and wire, convenient for you to use. Warranty: 1 Year replace or refund! Product Description MYSWEETY 2.2KW 3HP 220V 10A Variable Frequency Drive Inverter VFD Speed Controller 1. This frequency drive is made of high quality material, which is high accuracy and good performance. 2. It has good anti-interference ability and greatly improves stability. 3. With extremely strong anti-jamming capability, safe for you to use. 4. Simple to operate and wire, convenient for you to use. 5. Fast start and stop response, can provide you with good using effect. Advantage: 1. The inverter is easy to operate, easy to use, easy to use, and adopts a unique control mode to achieve high torque, high precision, wide speed adjustment range drive and excellent performance. 2. The protection function is very powerful, overload protection, fuse protection. It has good anti-skip performance, adapts to rough power, temperature, humidity and dust interference, greatly improving stability. 3. High precision, high performance, low noise, optimized PWM control technology and electromagnetic compatibility, to meet the requirements of users with low noise and low electromagnetic interference. 4. The panel is made of three anti-paint materials, making it 100% waterproof, moisture-proof, anti-static and longer to use. Package Includes: 1 Variable Frequency Drive 1 Operation Manual 1 x 50cm Extension Cord Specification Rated Voltage AC220V (single phase) Material engineering plastic Suitable Motor Power 2.2kW Control Method V/F closed loop Rated Current 10A; Capacity: 4.0KVA Input Voltage AC 220V Output voltage regulation mode PWM control Input Frequency 50/60Hz (Rated Power) Output Frequency 0~400Hz Input Phase 1 phase Output Phase 3 phase Size 17*12.5*16.3cm Button Function: DISP: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position. PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu. SET: Enter menus step-by-step, save setting parameters. FWD/REV: 1, Press momentary button to start,release to stop; 2, Rotate anticlockwise. Up: Press or press and hold to add data or function code. Down: Press or press and hold to minus data or function code. RUN: Start. STOP/RESET: 1, VFD stops running 2, Restore to interface before error. Knob: Adjust rotational speed. Terminal Function L,N single phase AC 220V input U,V,W output,connect to 3-phase AC motor GND ground Feature: 1.DC cooling fan low noise, large air volume. 2.Three anti-paint protection lines, improve and extend the life of the fuselage. 3.The machine is screwed to ensure the safety and reliability of the use. 4.Fine workmanship and stable performance, Long service life. Application: Spindle Motor, Drill Press, CNC, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines! Please note: The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which will cause a short circuit. Note: After the inverter is powered on, do not set during operation, otherwise it will affect the inverter and the settings will not be saved. Only limited to YL600 inverter. The default setting is 50HZ. If your motor needs to rotate at high speed, such as a 400HZ spindle motor, please set the parameters: P00.00 = 400HZ, P00.04 = 400HZ, P00.05 = 400HZ, P00.07 = 40HZ, P00.08=10.0HZ, P00.09 = 4.0HZ, P03.09 = 400HZ, P03.13 = 400HZ, P03.17 = 400HZ. The default setting of YL600 is 50HZ, if you directly restore the factory settings, the inverter can be used with 50HZ motors. Installation location and environment: ? Ambient temperature: -5?~40? and good ventilation? ? Places with no dripping water and low humidity? ? Places without sunlight, high temperature and severe dust? ? Location without corrosive gas and liquid? ? Places with less dust, oil gas and metal dust? ? No vibration, easy maintenance and inspection place? ? Places without electromagnetic noise interference? Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
