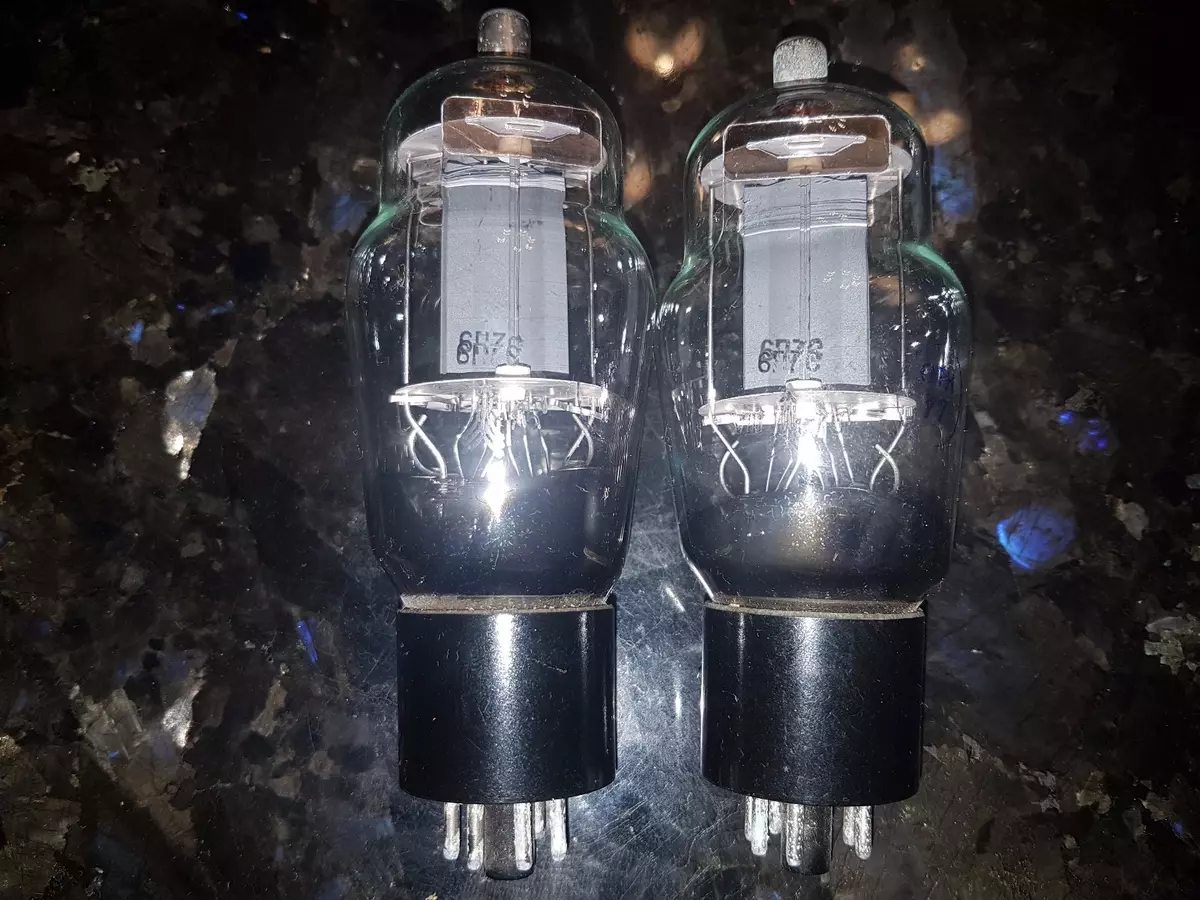

New Military Matched Pair 6P7S = 6BG6G ~ and 50 similar items

6?7? lot 2pcs The output beam tetrode. Designed for operation in output stages of the scan generators of the television devices. Durability at least 500 hours Weight not more than 100 g. Main technical characteristics 6?7?: Filament voltage ...... 6,3 0,6 In Filament current ...... 900 90 mA The anode voltage nominal (constant) ...... 250 The anode voltage limit (constant) ...... 500 The anode voltage limit (pulse amplitude) ...... 6 kV The anode current ...... 72 18 mA The cathode current limiting ...... 100 mA Voltage grid of the first nominal (constant) ...... -14 In Voltage grid of the first limit (pulse amplitude) ...... -400 In The current mesh first and reverse ...... no more than 4 µa The second grid voltage nominal (constant) ...... 250 The second grid voltage limit (constant) ...... 350 Current of second grid ...... no more than 8 mA The power dissipated by the anode limit ...... 20 W The power dissipated by the second grid, the limit ...... 3 W The voltage between cathode and heater limit (DC) ...... 135 In The leakage current between the cathode and the heater ...... no more than 100 µa The steepness of the characteristics ...... 5,9 1,1 mA/V Gain in a triode inclusion ...... 8,5 1,5 Internal resistance ...... 32 7.5 k? Capacity input ...... 11,5 2 pF Capacity output ...... 6 1 pF Capacity checkpoint ...... no more than 0.7 pF Design - glass base with ostalnym Note about Feedback: Please leave me feedback when you receive your item and are happy with the transaction. If you have any questions or concerns, PLEASE contact me first before leaving negative feedback. I always strive to resolve any problems and make our customers happy. Note About Delivery Time: I try to send your item as soon as possible, Normally no later than 3 days after payment is received. arrive time is contingent on the carrier.
