Loader Scale - Bucket Loader Scale - On and 26 similar items

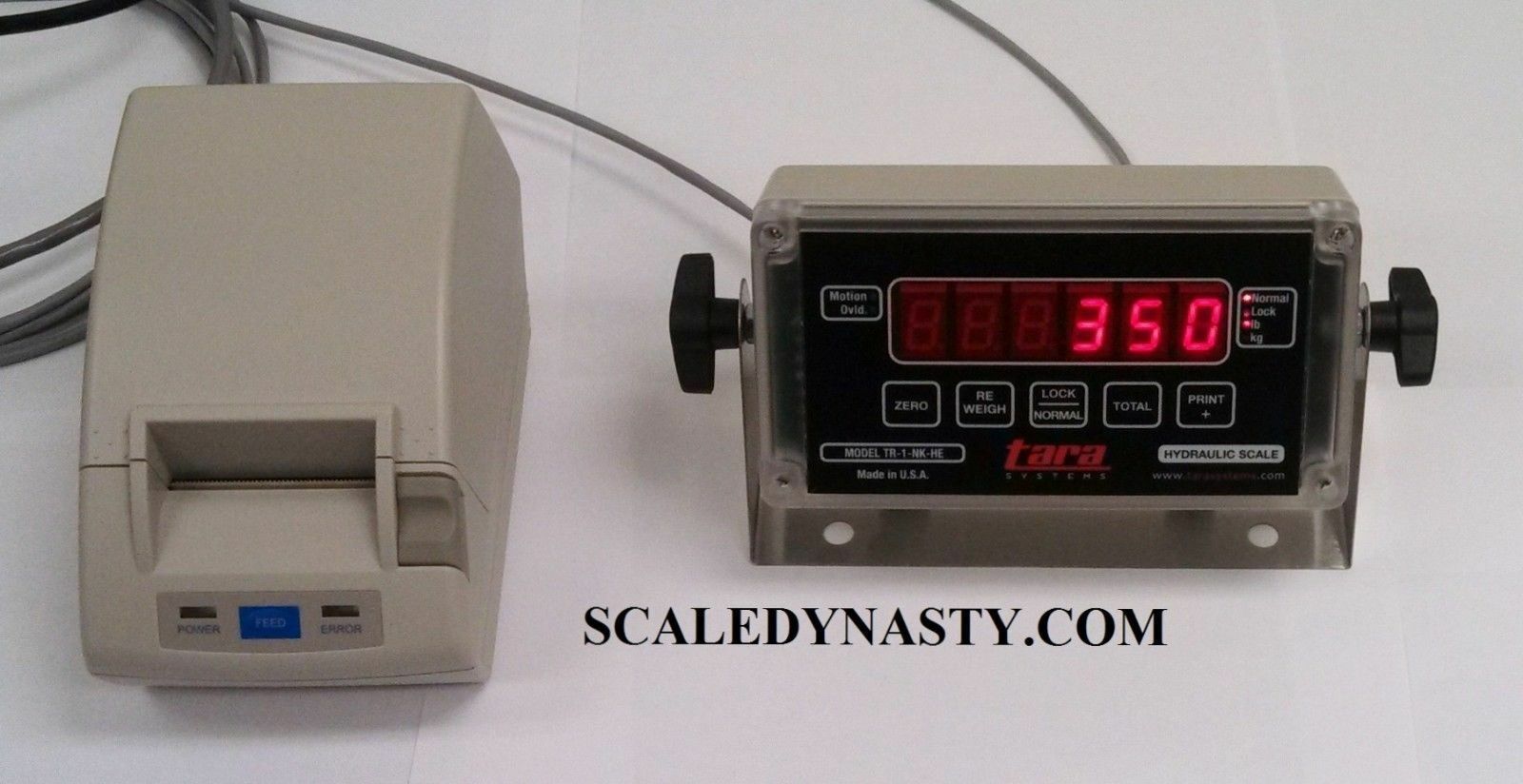

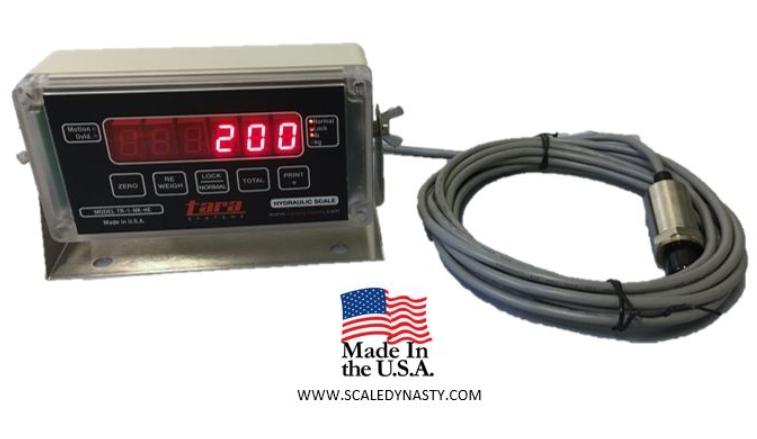

MANUFACTURE DIRECT Visit our website Scaledynasty for sale pricing. Attach to any type of hydraulic lifting machine such as front end loaders, forklifts, skid steers, etc. and view the weight of the load being lifted. Load and weigh in same operation! Low Cost - High Tech - Hydraulic Digital Scale MODEL: TR-1-NK-HE This system is easy to use and cost efficient when compared to systems priced over $3,000. A TEE FITTING AND 3' OF HYDRAULIC HOSE IS NEEDED FOR INSTALLTION. EVERYTHING ELSE IS INCLUDED Applications: • Attach to any type of hydraulic lifting machines such as front end loaders, forklifts, skid steers, etc. and view the weight of the load being lifted. • Accuracy error +/- 1-2% of lifts capacity. • Use on forklifts, loaders and most types of hydraulic machines. • Converts hydraulic pressure into a readable weight of the load being lifted. Features: • Weigh on the go and save time • Easy to install. Mount the display in a convenient location, attach the power cord to the machine battery. Install the sensor by “teeing” into the pressure side of the lifting cylinder hydraulic line. Please contact us for installation manual. • A known weight load of at least 10% of capacity should be used for final calibration on site. • 12 Feet of cable for hook up • Powered off the machine battery. Comes standard 12v. For electric forklifts with power of (24, 36, 48) please contact us or visit our website to purchase this scale with a converter. • The scales capacity has no limit and will be the same as the machines max capacity. • Tee is not included and can be found at your local parts store. • All push button controls • Weight total feature. Add up multiple loads into one total weight. Allows for accumulation when loading or unloading. • It has a “Lock-on-Weight” feature that keeps the weight on display while pressure may be bleeding in the lifting cylinder. • • Each load weight can be stored and totaled. • A “reweigh” button for “lock-on-weight” to recall weight without reloading the scale • Adjustable motion detection and threshold for “lock-on-weight” • Adjustable sample weight • Display modes for current load or total weight • Graduation: Weighs in 10lb increments up to 10,000 lbs and 50 lb increments above 10,000 lb capacity. • 5000 PSI (temperature compensated) sensor. For harsh environments and extreme temperatures. • 1/4 Inch NPT male threads on sensor • ABS Sealed Enclosure. Water-resistant, corrosion proof, enclosure with stainless steel adjustable stand/mount. Measures 6.5” x 3.5” x 2.25” without stand. • Full range push button zero/tare. • Data output for printer or computer. • 6 digit display with .56” high LED digits. • Adjustable parameters for automatic weight capture and capture and add for front-end-loaders • Humidity: 0 to 80% non-condensing. • Sensor operating temperature: -40c to 125c (-40f to 257f). • Overload warning option. Please contact us before ordering for price or visit our website. • Load monitor display option. Please contact us or visit our website for more info. • Optional thermal tape printer ($445.00) • Optional wireless printer ($995.00) • 1 year MFG WARRANTY • Proudly made in the USA Installation is easy and instructions are included for set up and calibration. We provide technical support over the phone should you need any assistance. The standard features provide for easy setup and calibration and simple interface to optional printers or computers. Contact us for more product information/support/specials. We accept Paypal, Visa, Mastercard, American Express, and Discover
