Smart BMS 24V - 60V Lifepo4 40A 50A 80A 100A and 50 similar items

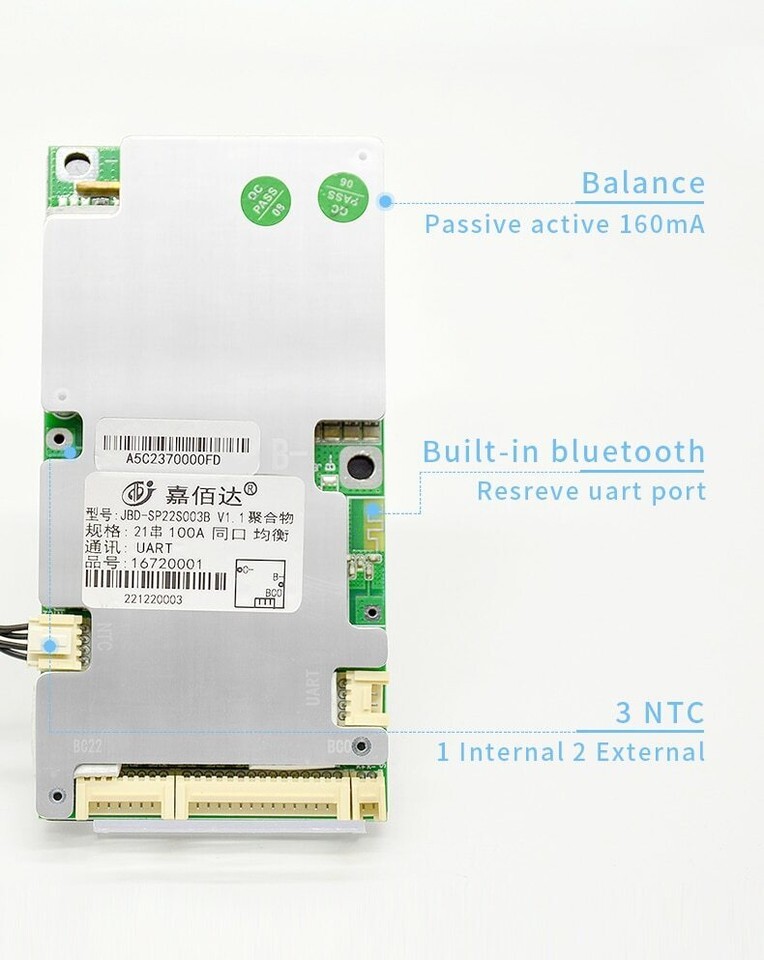

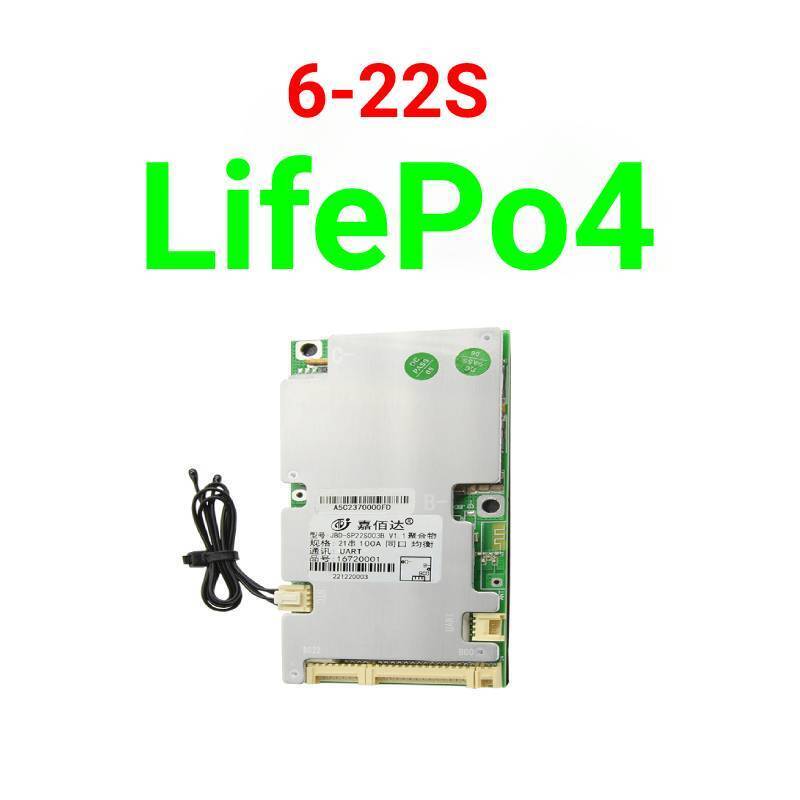

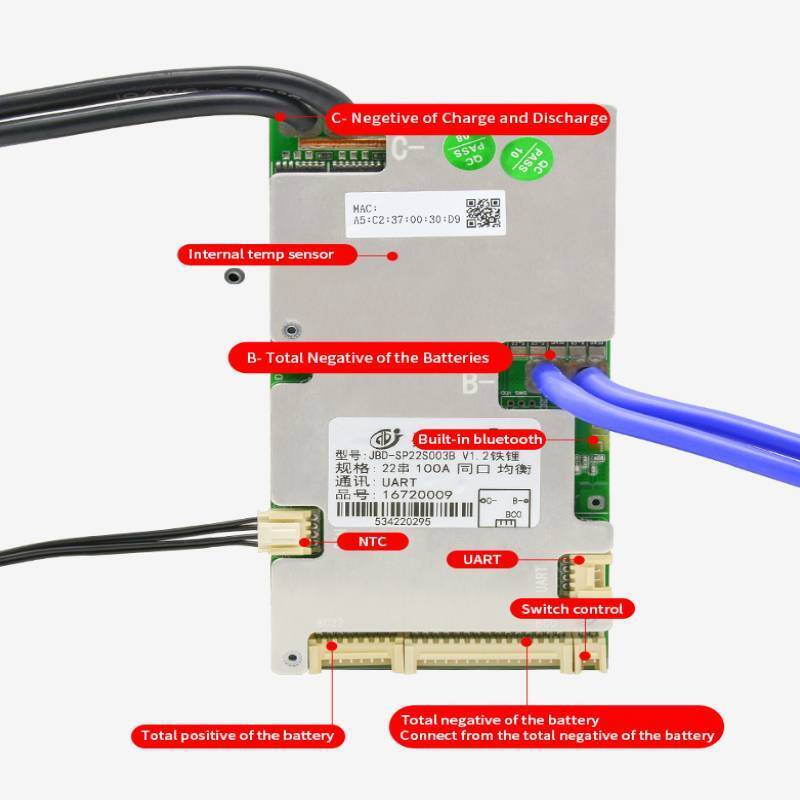

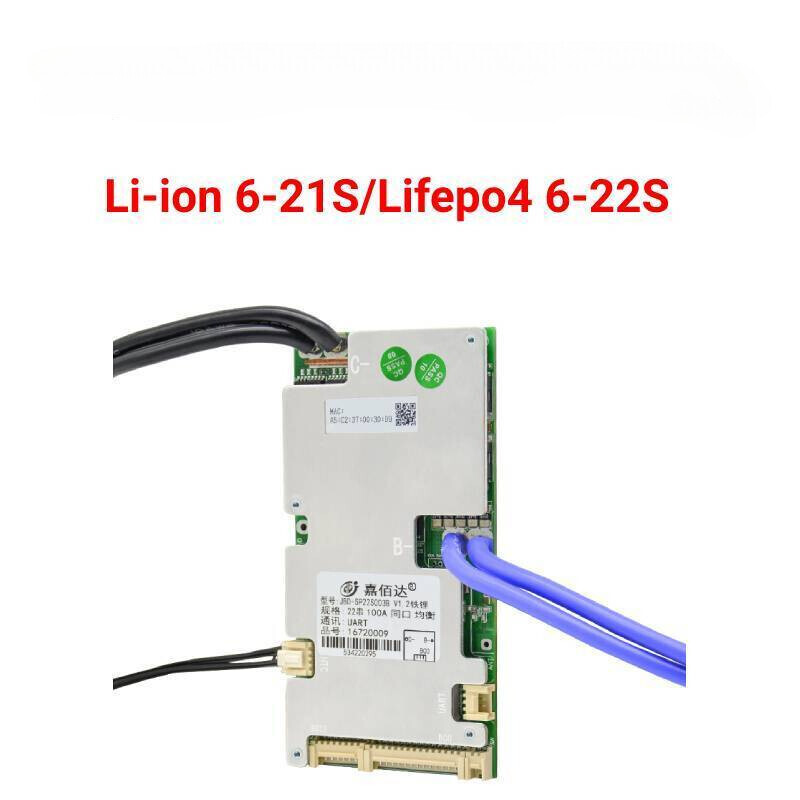

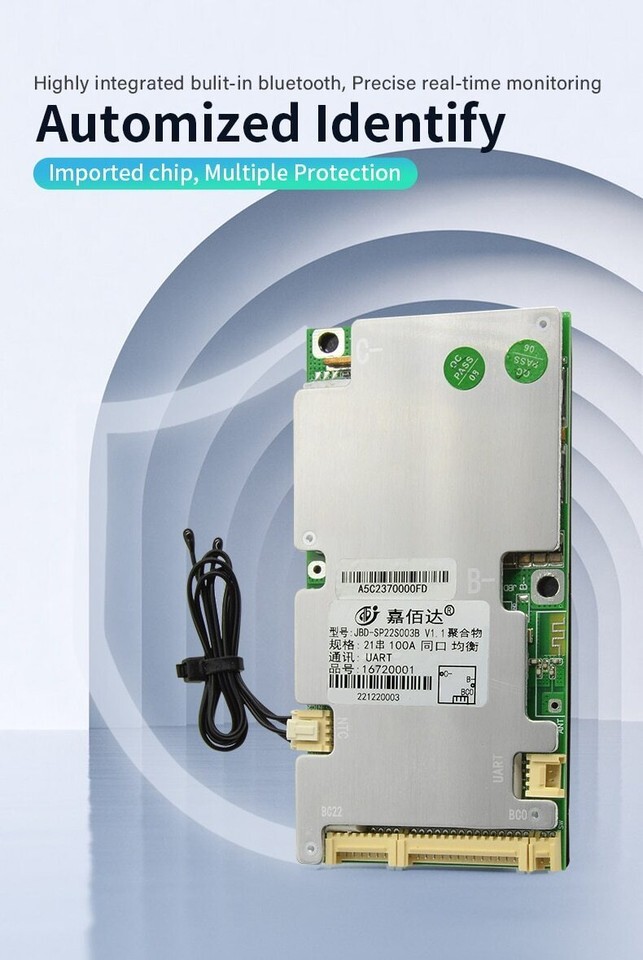

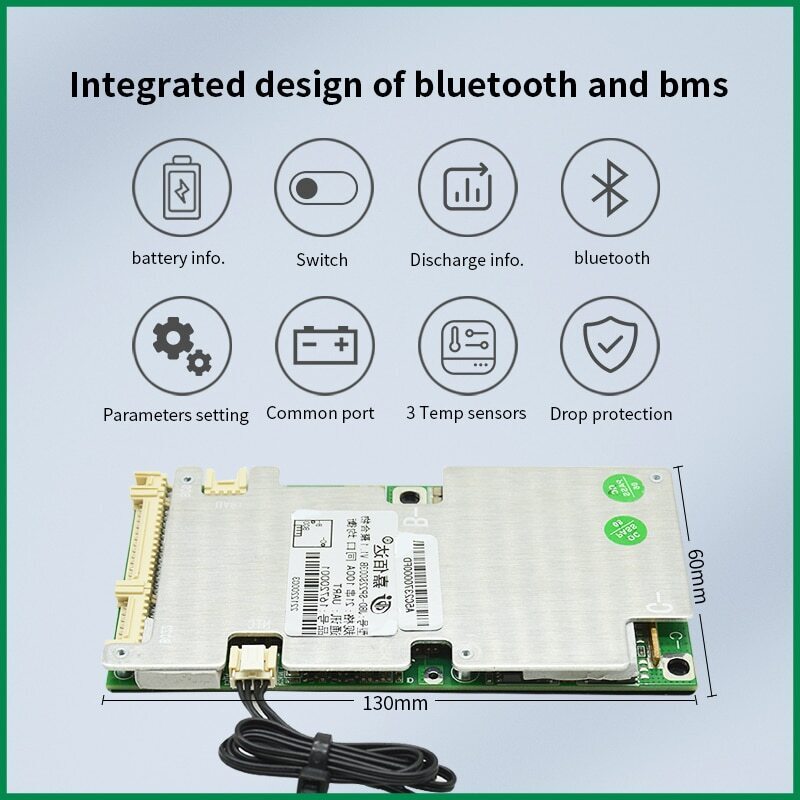

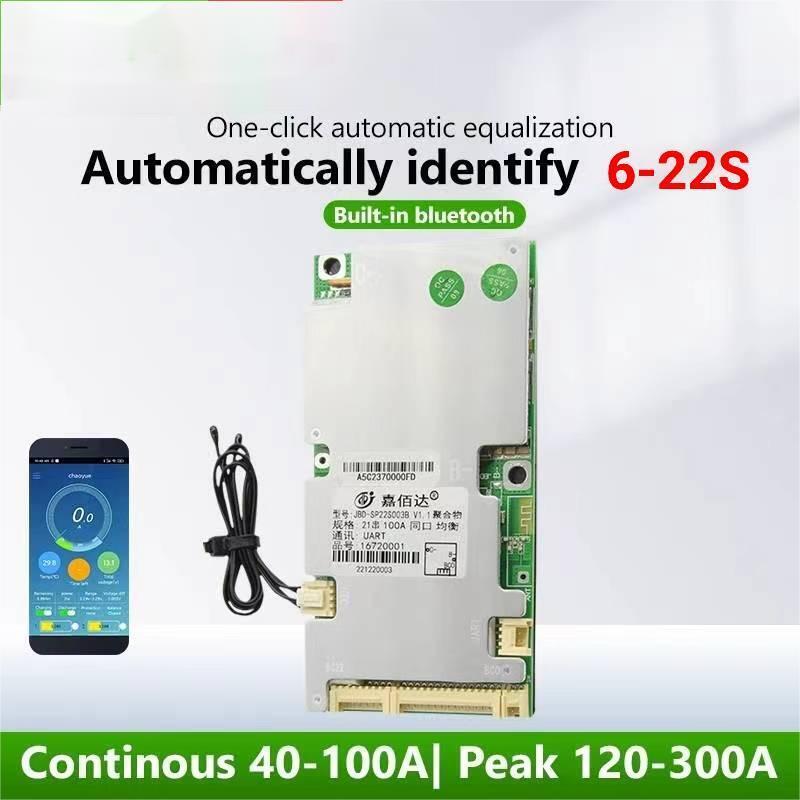

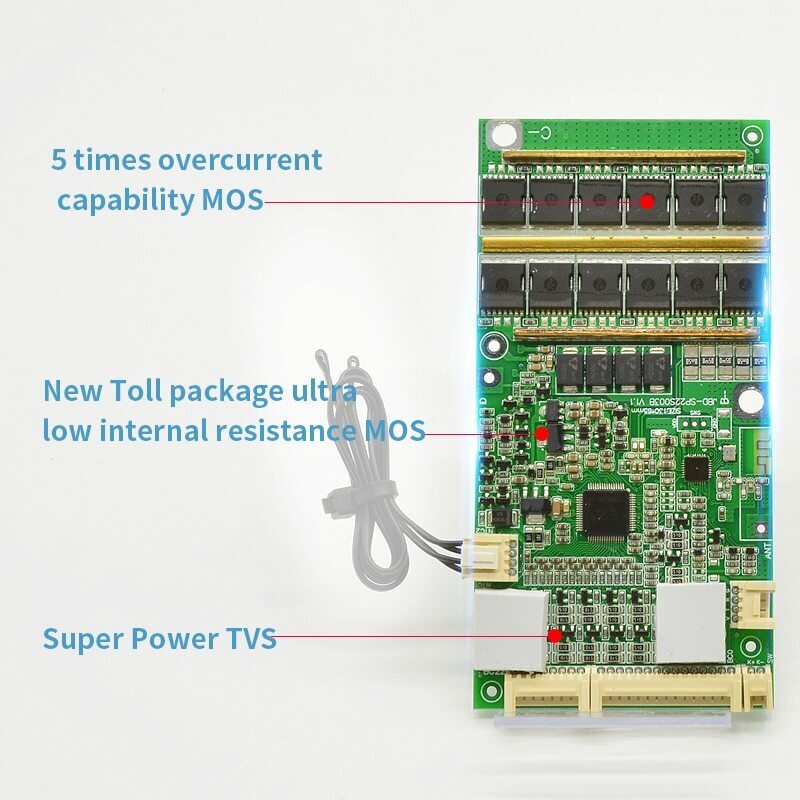

JBD BMS Smart BMS - SP22S003 This Smart BMS supports 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 22S batteries, can automatically identify strings from 6S to 22S,built-in BT,with 3 NTC (1pc Internal+2pcs External), applicable for Power Battery, E-Bike,E-Motorcycle,etc. Product Introduction Applicable Battery Type:3.6V Li-ion /3.2V LiFePo4 Battery Support Number Of Strings: 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 22S ,Li-ion(6-21S)/LifePo4(6-22S) Size:1300.5 * 650.5 * 102mm Continuous current 40-100A,balance current 100-160mA Package included: BMS with Built-in BT*Balance Wires Function Introduction (1) BT- APP in Phone (xiaoxiangElectric App) Support Both IOS version and Android version, can monitor and change the parameters (need to be within the specified range). (2) UART-JBD PC Tool Box (Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.). (3) UART- LCD Displayer--Not Support(UART Port can't supply power,so can't support UART LCD Displayer ) Attention: (1) UART and BT is the same ports, can't be used at the same time (2) All smart bms has BT and UART function (3) All UART communication can be converted to Canbus communication if needed, only need to buy a canbus module converter seperately.
