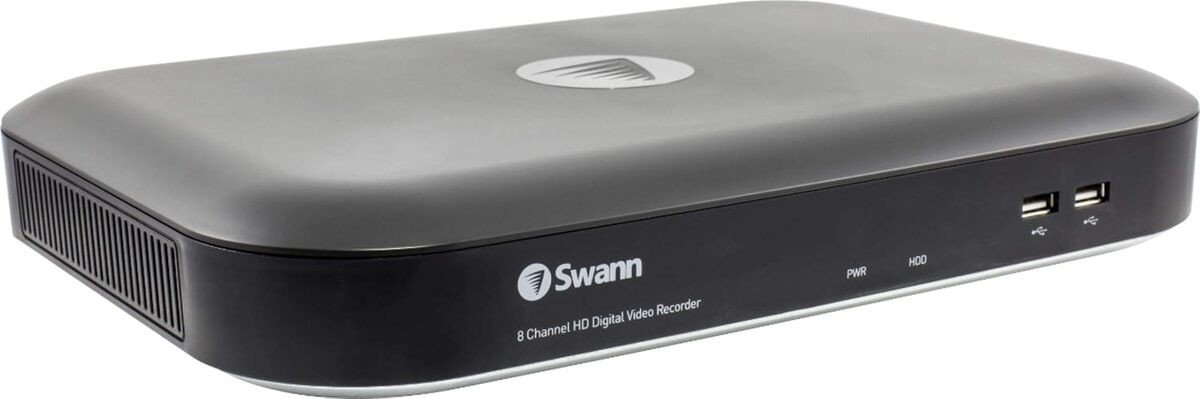

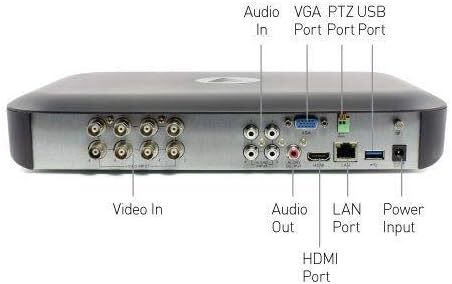

Swann 4980 8 Channel CCTV Security DVR 5MP Super HD DVR-4980 HDMI VGA BNC HomeSafe View 24/7 App 5MP Digital Video Recorder 2TB HDD for Swann T890 T891 cameras Swann 4980 8-Channel 5MP Super HD CCTV Security DVR Experience state-of-the-art surveillance with the Swann DVR-4980 , an 8-channel Digital Video Recorder designed to deliver crystal-clear 5MP Super HD footage. This system provides reliable 24/7 security monitoring for your home or business, leveraging advanced True Detect technology and accessible via multiple viewing options. Key Features Stunning 5MP Super HD Resolution: Capture incredibly sharp and detailed video, which is 2.4 times clearer than standard 1080p Full HD. This clarity allows for easier identification of crucial details like license plates and facial features. 8-Channel Expansion: Monitor up to 8 different areas simultaneously. The DVR supports 8 BNC camera inputs, allowing for comprehensive coverage of medium-sized properties. Massive 2TB Local Storage: The built-in 2TB SATA hard drive allows you to record continuously from all 8 channels for up to 365 days or more, with no ongoing fees. The storage is expandable up to 6TB for even more footage capacity. True Detect Thermal Sensing: The system utilizes innovative PIR (Passive Infrared) sensors to reliably detect heat-generating moving objects, such as people, cars, and large pets. This drastically reduces false triggers from falling leaves, rain, or bugs, saving hard drive space and ensuring relevant alerts. Remote Viewing Anywhere, Anytime: Connect the DVR to the internet and use the free Swann HomeSafe View app on your smartphone or tablet (iOS and Android) to view live footage, play back recordings, and receive push notifications remotely. Versatile Connectivity: View live or recorded video in high definition on your HDTV, LCD screen, or monitor via the HDMI or VGA ports. Smart Home Integration: Works with Google Assistant, allowing you to use voice commands to control and stream video to your TV. Easy Footage Transfer: Transfer incident video to external storage quickly via the USB 3.0 or 2.0 ports. QuickShot Smart Search: Easily find recorded incidents by searching a specific image area, or use QuickShot Cloud to save snapshots of activity directly to your personal Dropbox account. Product Specifications Video Inputs: 8 BNC Channels Recording Resolution: Up to 5MP (2560 x 1920 pixels) Hard Drive: 2TB SATA HDD (Expandable up to 6TB) Video Outputs: HDMI, VGA Audio Inputs/Output: 4 x RCA Input / 1 x RCA Output Connectivity: RJ45 Ethernet port (wired network connection), Wi-Fi via dongle (not always included) App: HomeSafe View (iOS/Android) Dimensions: 12.8" W x 9.06" D x 2.09" H (326mm x 230mm x 53mm) Compatible 5MP BNC Cameras The Swann DVR-4980 is compatible with Swann BNC cameras up to 5MP resolution, including older analog (CVBS), AHD, and HD-TVI formats. The original system often included the PRO-5MPMSB bullet cameras. Recommended compatible Swann camera models include: PRO-5MPMSB series (Bullet) PRO-5MPMSD series (Dome) Any other Swann camera explicitly listed as compatible with the DVR-4980 or DVR-4900 series. Key Compatibility Notes: For the True Detect features to work, the add-on cameras must also have the built-in PIR thermal motion sensors (usually indicated by "MS" in the model number or the "True Detect" logo). While non-Swann cameras might work (4-in-1 cameras supporting TVI/AHD/CVI/CVBS), full functionality like True Detect and specific cloud settings may be limited. Guide: Setting up True Detect and Dropbox Integration The True Detect feature uses a PIR sensor to detect heat signatures, reducing false alerts. Cloud storage via Dropbox provides an off-site backup of snapshots triggered by these events. 1. Setting up True Detect (via the DVR menu) You'll need a monitor connected to the DVR via HDMI/VGA and the included USB mouse to access these settings. Access the Menu: Right-click on the live view screen and select Menu. Enter your username and password (default is usually admin with no password, but you should have set one during the initial setup wizard). Navigate to Alarm Settings: Select the Alarm tab (or similar icon) from the main menu. Configure Detection: Select the Detection or Motion submenu. Choose the Channel (camera number) you wish to configure. Ensure PIR (Passive Infrared) is enabled as the detection type if available, alongside or instead of pixel-based motion detection. The camera must have the PIR sensor for this to be an option. Adjust sensitivity as needed. Configure Actions: In the Action sub-tab: Ensure "Send Email" and "Picture to Cloud" (or "Cloud Function") checkboxes are selected. You can also set the system to trigger a buzzer, show a full-screen prompt, or activate a spotlight/siren if your specific camera model supports those features. Save Settings: Click Save to apply the changes for that channel. Use the Copy function to quickly apply these settings to other cameras if desired. Set a Schedule (Optional but Recommended): Go to the Deterrent menu (if available) to set specific times during the day/week when these actions (like lights/sirens) should be active. 2. Setting up Dropbox Integration (via App and DVR) This process involves linking your Dropbox account through the app and activating the cloud function on the DVR itself. Activate Cloud on DVR: On the DVR, navigate to the Menu Device tab Cloud Storage. Select Enable and then Activate Cloud. Select OK. A notification will be sent to the email address associated with the DVR's admin account. Verify via Email: Check your email inbox for an activation notification from Swann and click the link to activate the service for your account. Link Account via HomeSafe View App: Open the Swann HomeSafe View app on your mobile device (ensure your phone and DVR are on the same network initially for easy pairing). Tap the (description exceeds maximum possible length)
