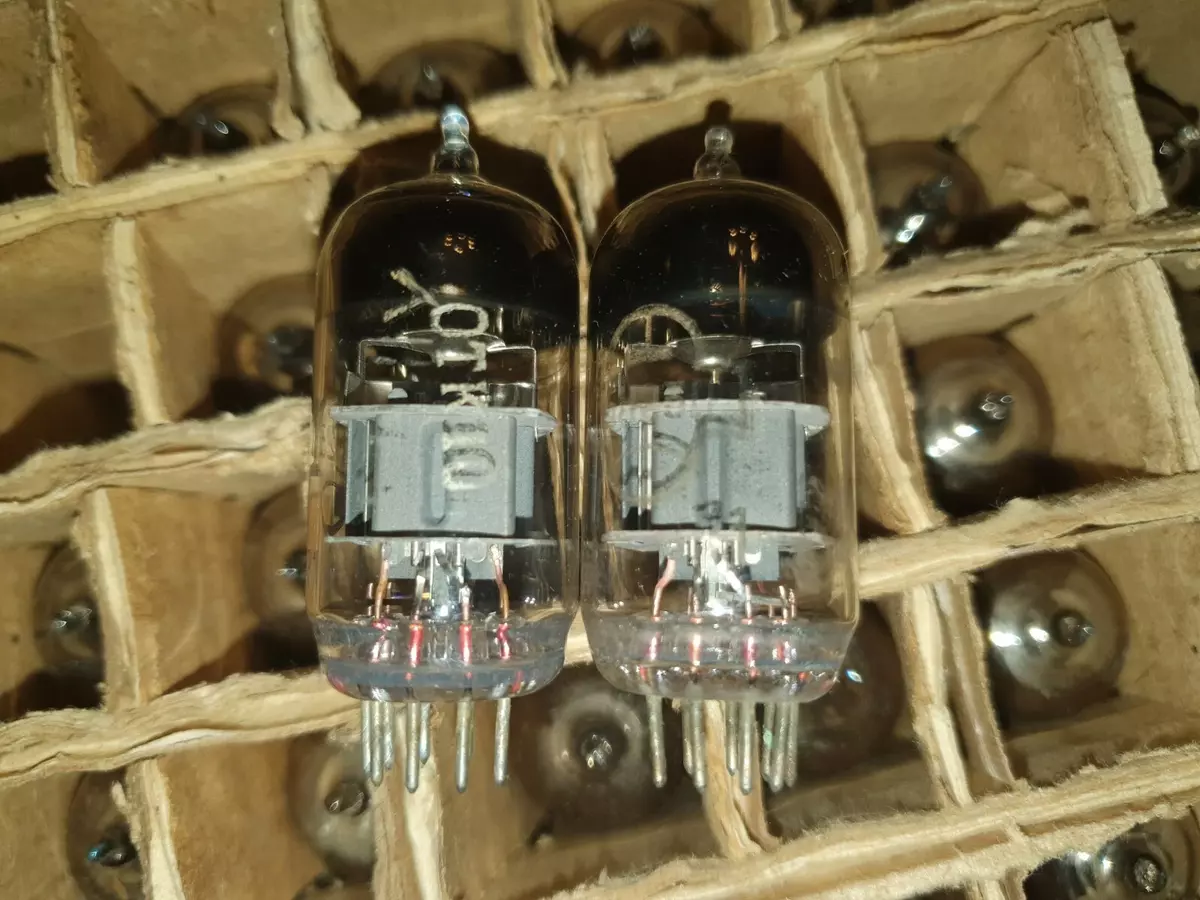

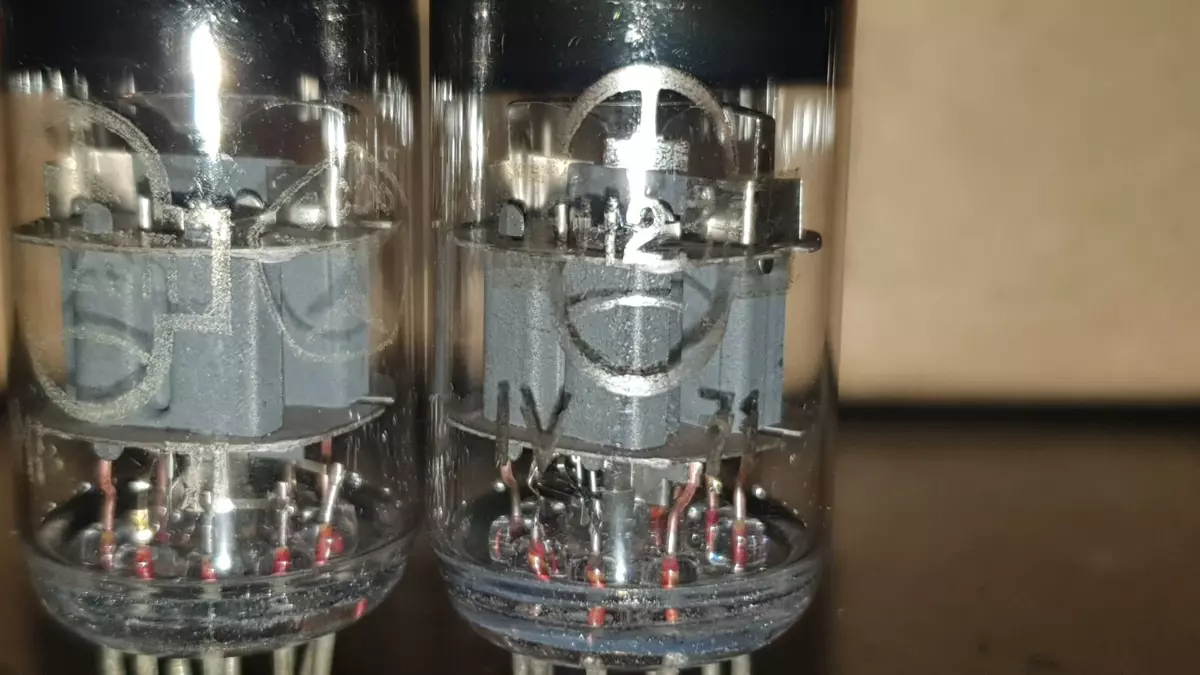

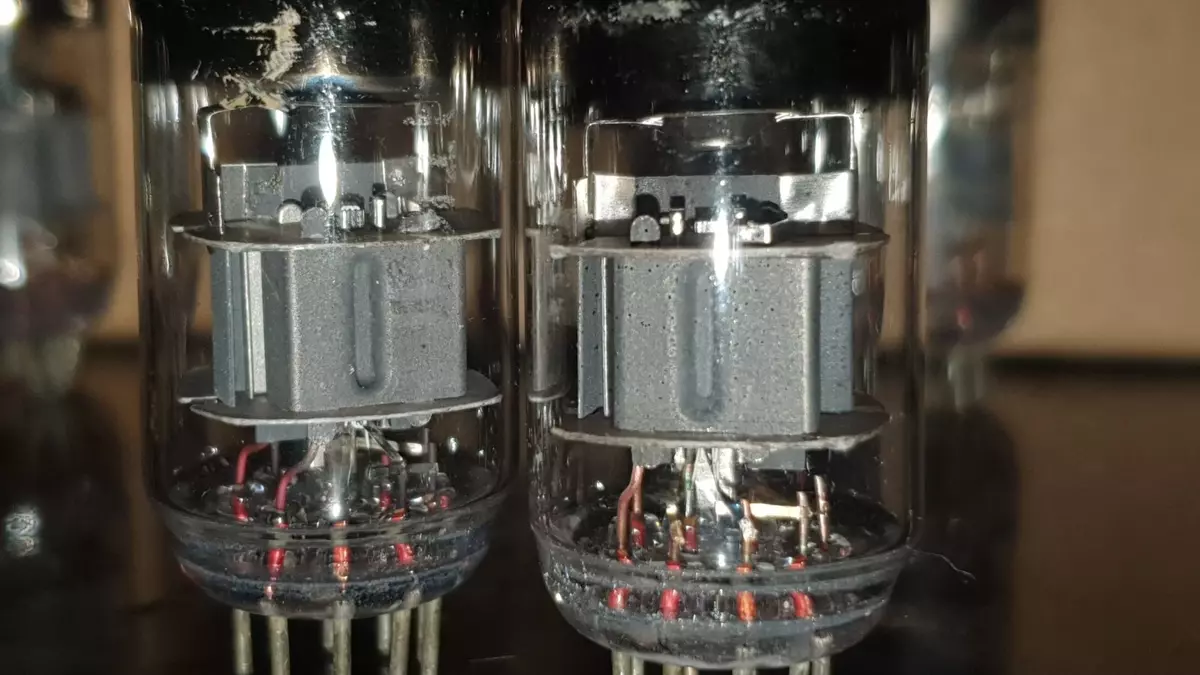

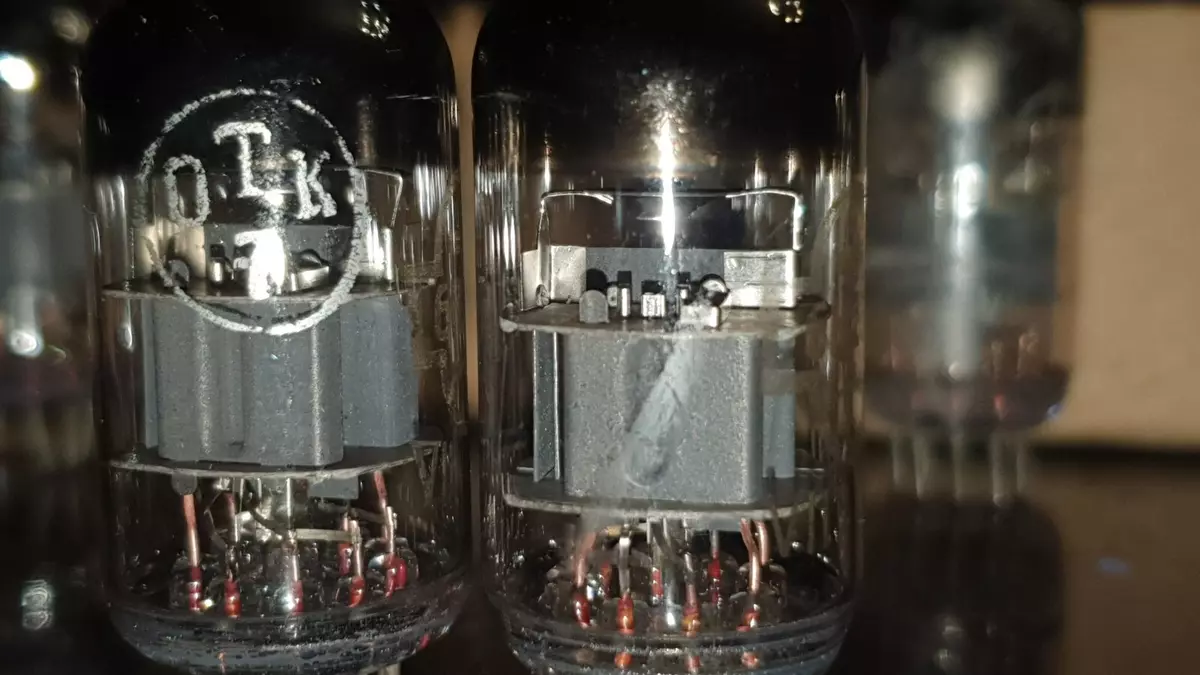

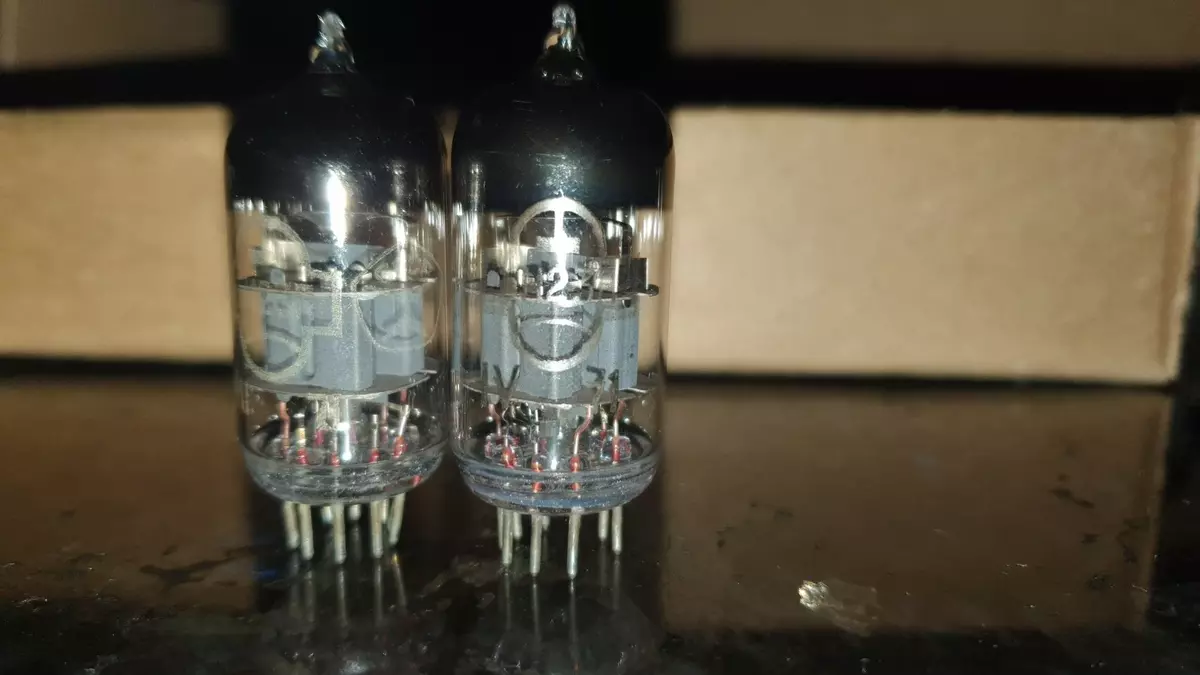

6N23P = E88CC = 6922 = 6DJ8 Matched Pair and 50 similar items

6?23? Miniature double triode universal. Designed to work as a broadband amplifier and mixer high frequency low noise and low power circuits of amplifiers and pulse generators. Durability of at least 10000 h. Weight 6?23? no more than 16 g. Main technical characteristics 6?23?: Filament voltage ...... 6,3 0,6 In Filament current ...... 310 25 mA The anode voltage nominal (constant) ...... 100 The anode voltage limit (constant) ...... 300 In The anode current of each triode ...... 15 mA The cathode current limiting ...... 20 mA The cathode current limit (pulse amplitude) ...... 200 mA Voltage grid (constant) ...... 9 In Grid voltage limit (pulse amplitude) ...... 260 The power dissipated by the anode limit ...... 1.8 W The power dissipated by the grid limit ...... 0.03 W The voltage between cathode and heater limit (DC) ...... -200 To The steepness of the characteristics of each triode ...... The 12.7 mA/V The gain of each triode 34 9 The input impedance at the frequency of 200 MHz ...... 500 Ohm The equivalent resistance of the noise vnutrishnih...... 300 Ohm Resistance in the cathode circuit to automatically bias ...... 680 Ohm The resistance in the grid circuit limiting ...... 1 M? The input capacitance of each triode ...... 3,6 pF The capacity output of the first triode ...... 2,1 pF The capacity output of the second triode ...... 1,9 pF The feed-through capacitance of each triode ...... 1.5 pF Capacity anode - cathode of each triode ...... 0,18 pF The capacitance between the anodes ...... not more than 0.06 pF The capacitance between nets ...... not more than 0.005 pF Design ...... glass miniature. Note about Feedback: Please leave me feedback when you receive your item and are happy with the transaction. If you have any questions or concerns, PLEASE contact me first before leaving negative feedback. I always strive to resolve any problems and make our customers happy. Note About Delivery Time: I try to send your item as soon as possible, Normally no later than 3 days after payment is received. arrive time is contingent on the carrier
