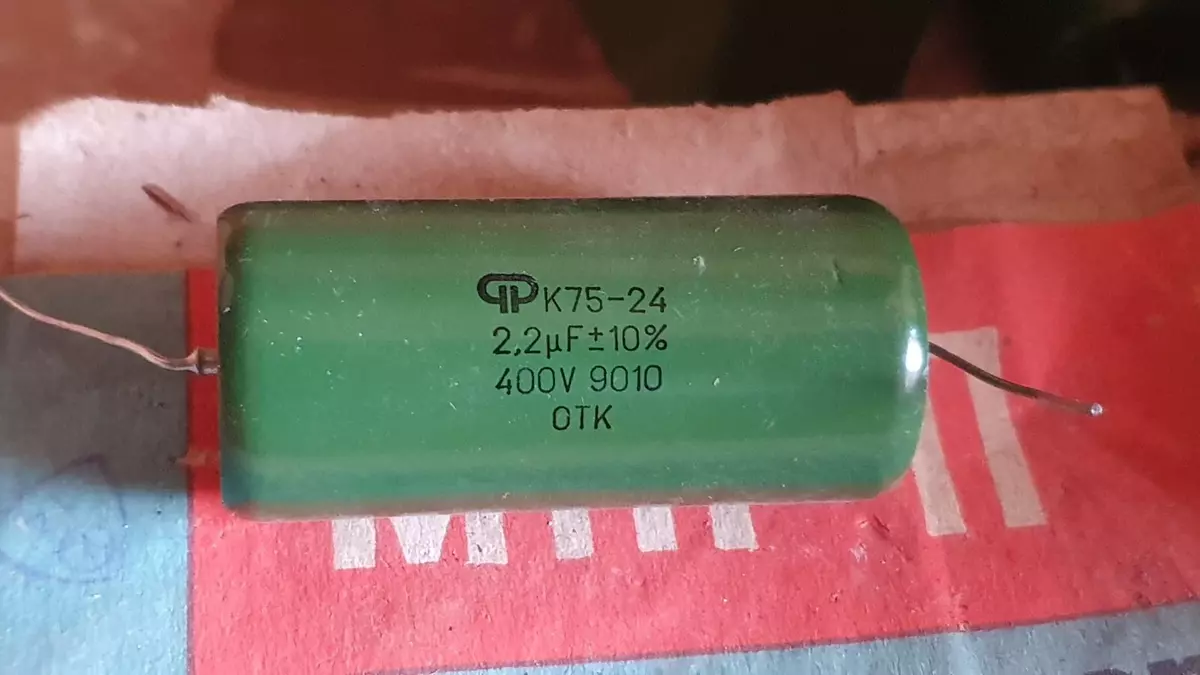

Capacitor K75-24 400V 2,2 U F +/- 10% Pio and 50 similar items

K75-24 400 v 2.2 uf K75-24 capacitors combined with metallized plates are sealed. Designed for operation in DC, AC, pulsating current circuits and in pulse modes. They are available in metal cylindrical housings with different terminal designs: - with wire axial terminals; - with petal conclusions. They are manufactured in an all-climatic version [B2.1] and in a version for temperate and cold climates [UHL5.1] according to GOST 15150-69. They can be used instead of: MBGO, K73P-2, K73-26, K75-24. Technical conditions: - acceptance of "OTC" OZH0.464.144 TU; - acceptance of "VP" OZH0.464.078 TU; - acceptance of "OS" OZH0.464.078 TU, OZH0.464.202 TU. The main technical parameters of capacitors K75-10: - Range of nominal capacities ....... 0,1... 10,0 ICF; - Rated voltage ....... 250; 500; 750; 1000 In; - Permissible capacity deviations ....... 5; 10; 20 %; - Tangent of the loss angle, not more than ....... 0.008; - Insulation resistance of the output-output, not less than ....... 24000 mOhm; - Insulation resistance of the terminal housing, not less than ....... 10000 mOhm; - Time constant in normal climatic conditions, not less than ....... 8000 mOhm x UF; - Relative humidity at +35 C ....... 98 %; - Temperature range ....... -60... +100 With; - Minimum operating time ....... 10000 hours; - Retention period ....... 15 years.
