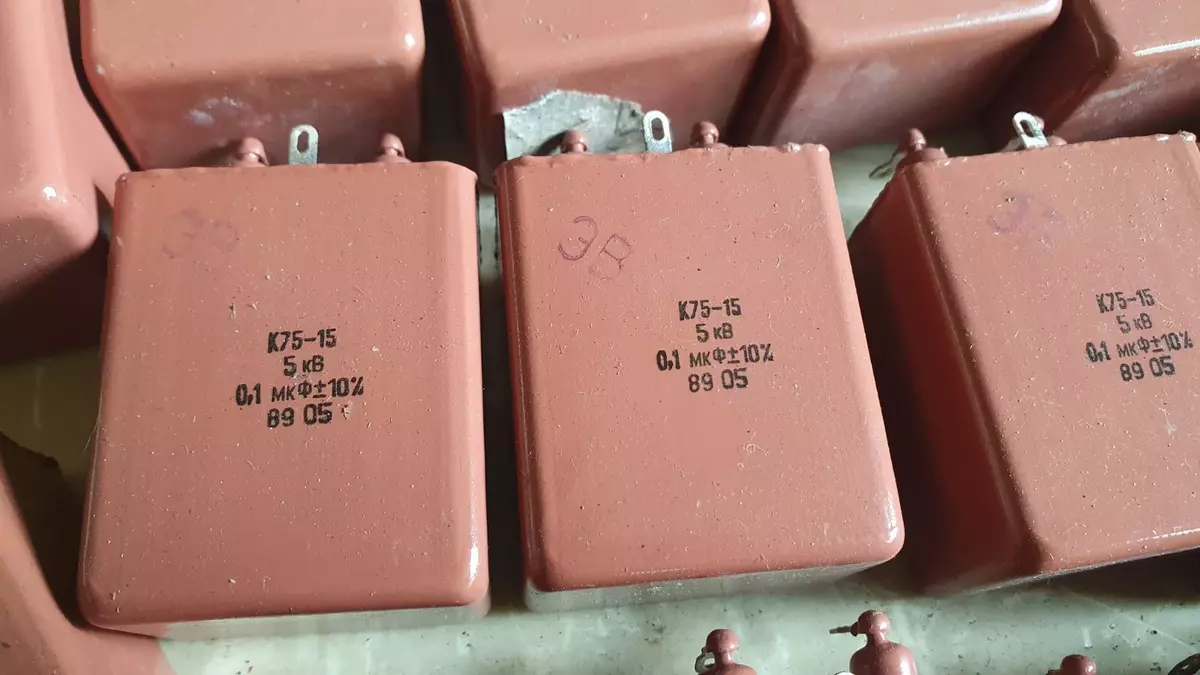

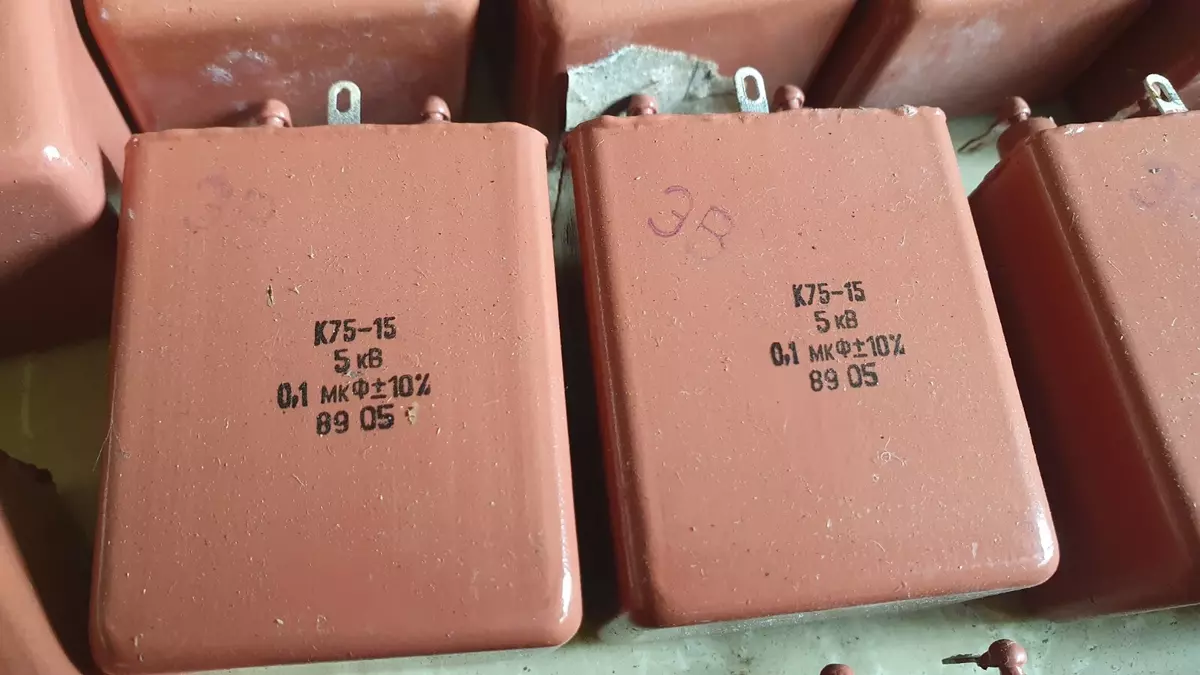

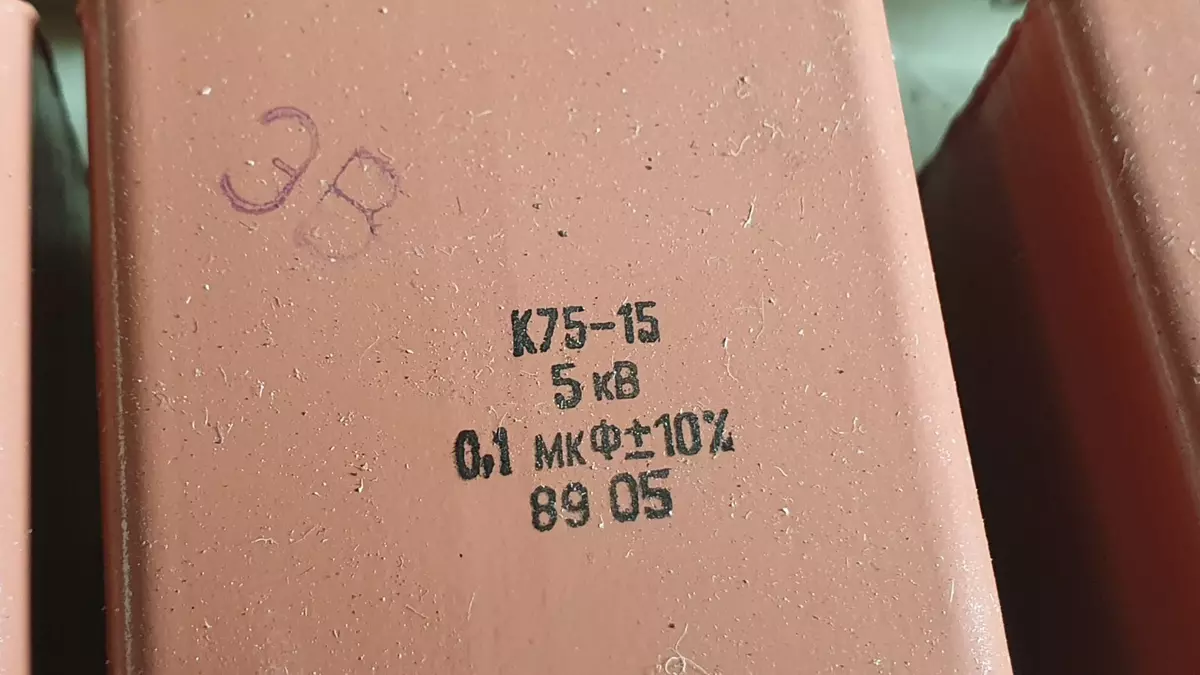

Capacitor K75-15 5 kV 0.1 uF +/-10% USSR NOS and 50 similar items

K75-15 5 kv 0.1 uf Capacitors K75-15 combined with foil plates sealed. Designed to work as built-in elements of the internal mounting of the equipment (in the casing of the complete product) in the circuits of constant and pulsating currents. They are available in rectangular metal cases with different terminal designs: - with petal terminals; - with threaded leads. They are manufactured in an all-climatic version [B2.1] and in a version for temperate and cold climates [UHL5.1] according to GOST 15150-69. Technical conditions: - acceptance of "OTC" OZH0.464.191 TU; - acceptance of "VP" OZH0.464.092 TU; - acceptance of "OS" OZH0.464.092 TU, OZH0.464.202 TU. The main technical parameters of capacitors K75-15: Range of nominal capacities ....... 0,0051... 10,0 ICF; - Rated voltage ....... 3; 5; 10; 16; 25; 40; 50 kV; - Permissible capacity deviations ....... 5; 10; 20 %; - Tangent of the loss angle, not more than ....... 0.01; - Insulation resistance output-output, not less than ....... 20000 mOhm; - Insulation resistance of the output-housing, not less than ....... 10000 mOhm; - Time constant in normal climatic conditions, not less than ....... 4000 MOm x UF; - Relative humidity at +35 C ....... 98 %; - Temperature range ....... -60... +100 With; - Minimum operating time ....... 1000 hours; . Note about Feedback: Please leave me feedback when you receive your item and are happy with the transaction. If you have any questions or concerns, PLEASE contact me first before leaving negative feedback. I always strive to resolve any problems and make our customers happy Note About Delivery Time: I try to send your item as soon as possible, Normally no later than 3 days after payment is received. arrive time is contingent on the carrier.
